Review Asus G750JW Notebook
Allen Ngo, 07/08/2013

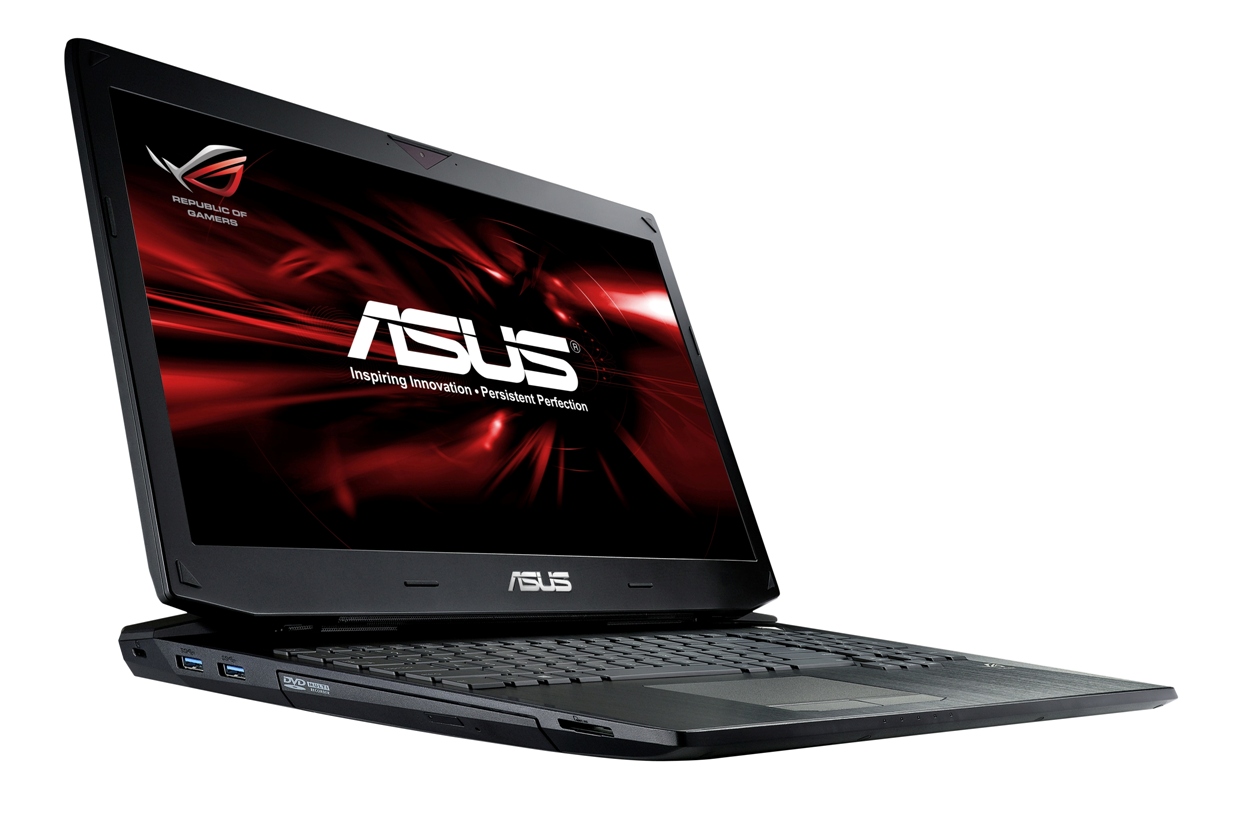

The Asus Fighter Jet. Each iteration of the core Asus G Series gets better and better and the G750 series is no exception. The ROG branding has yet to let us down as we find out in this review what the new 2013 models bring aside from the obvious Haswell and GTX Kepler refreshes.
Ads by Google
DUG Eagle Ford - DUGEagleFord.com
The Largest Shale Event of The Year Increase Your Exposure and Sales
DUG Eagle Ford - DUGEagleFord.com
The Largest Shale Event of The Year Increase Your Exposure and Sales
Probleme Cu Laptopul? - Romtelecom.ro/Asistenta_Laptop
Probleme Cu Laptopul?Romtelecom Te Ajuta, Intra Aici !
Probleme Cu Laptopul?Romtelecom Te Ajuta, Intra Aici !
Case
Connectivity

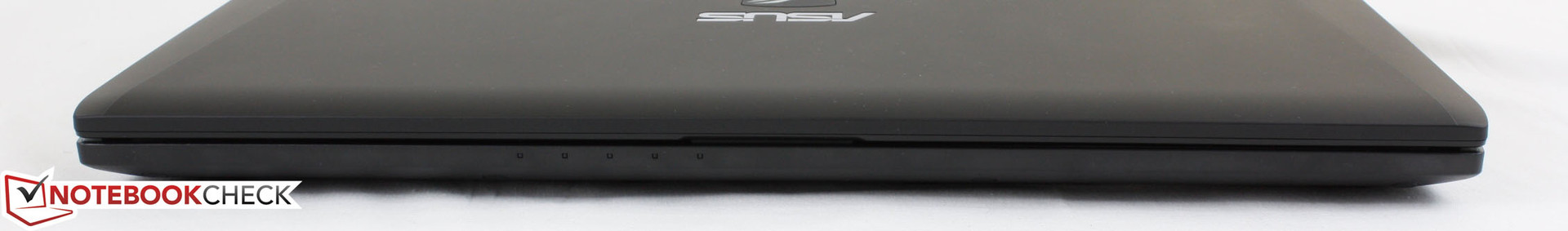

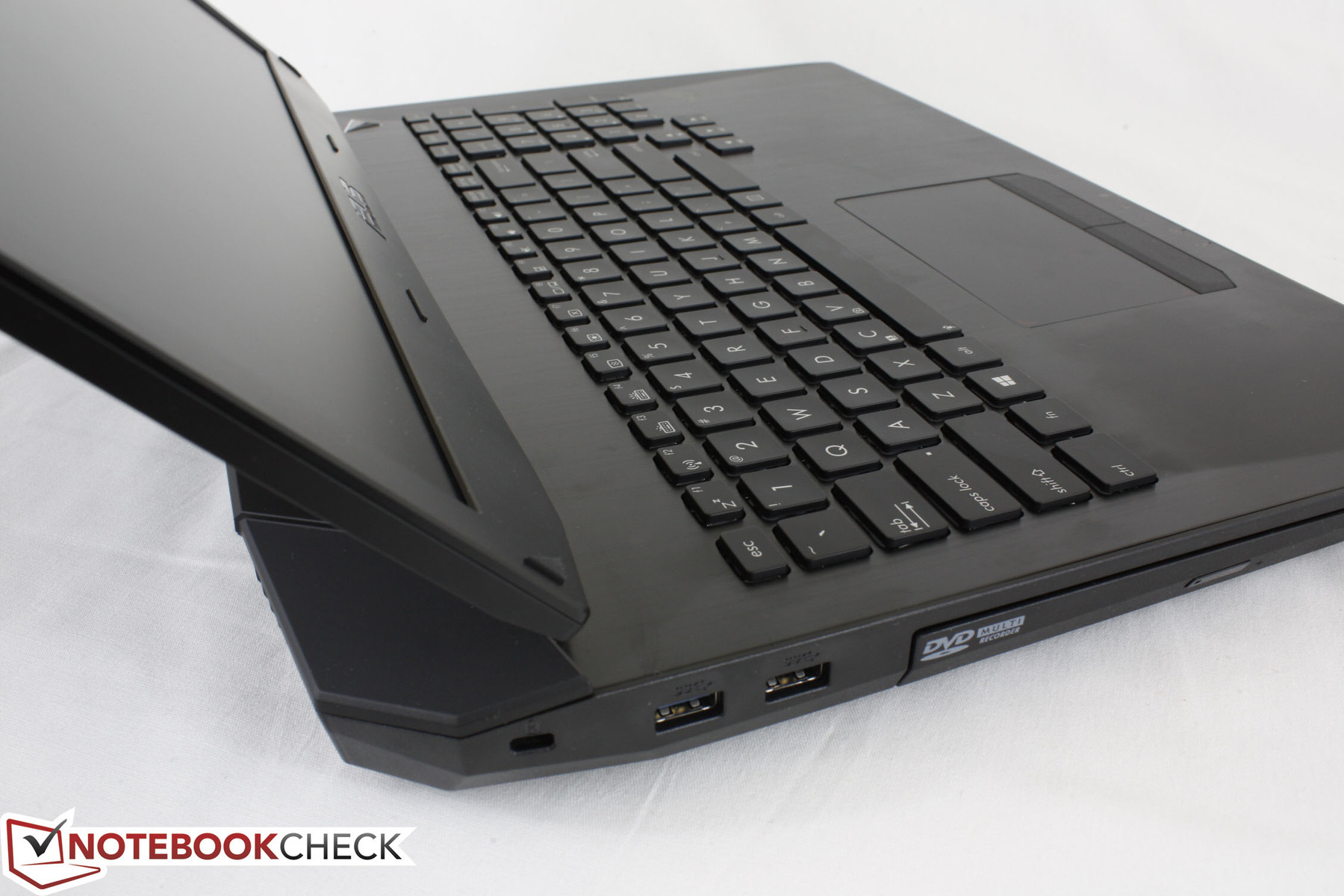

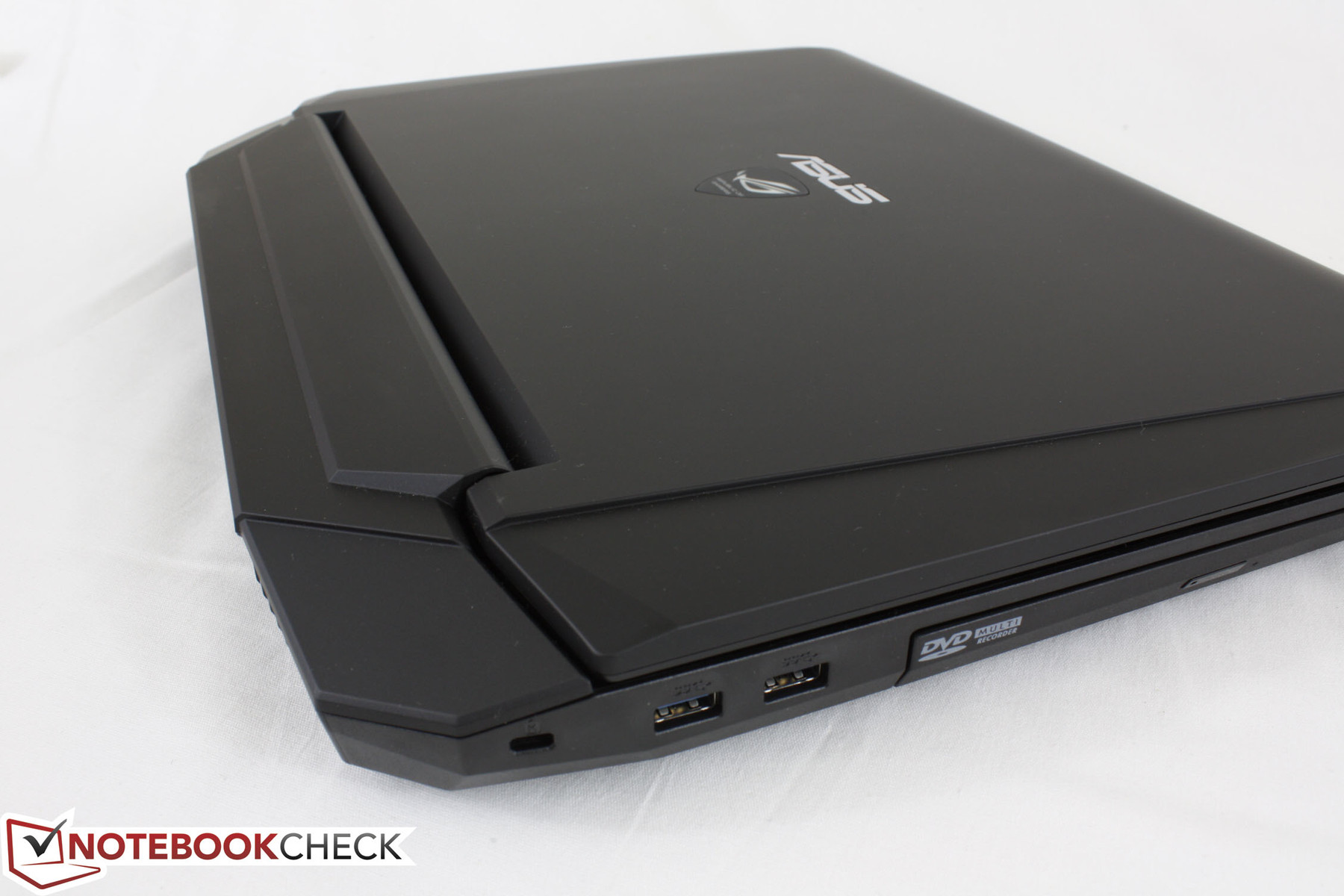

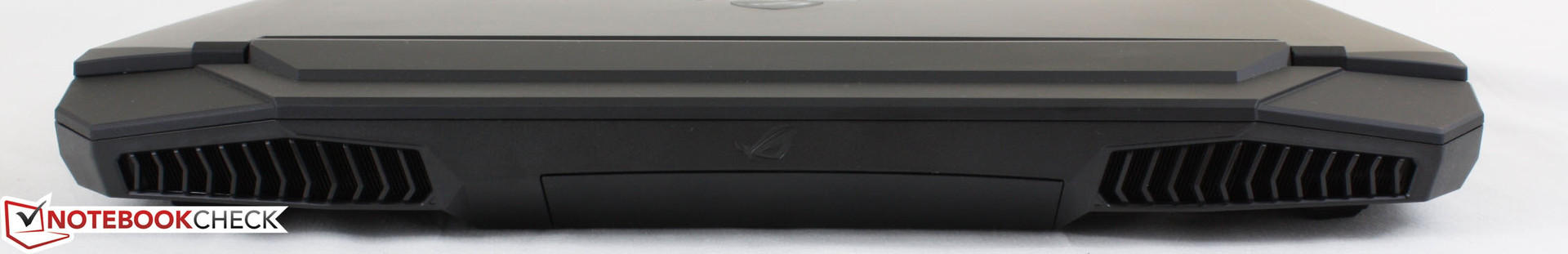

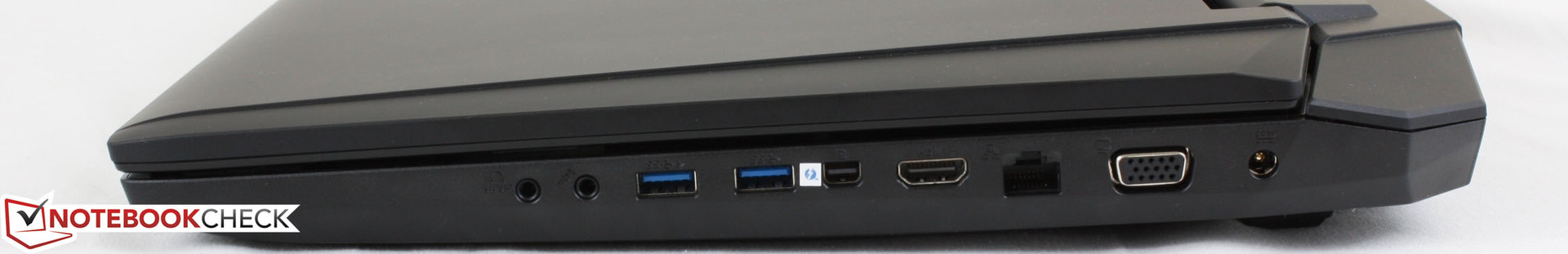

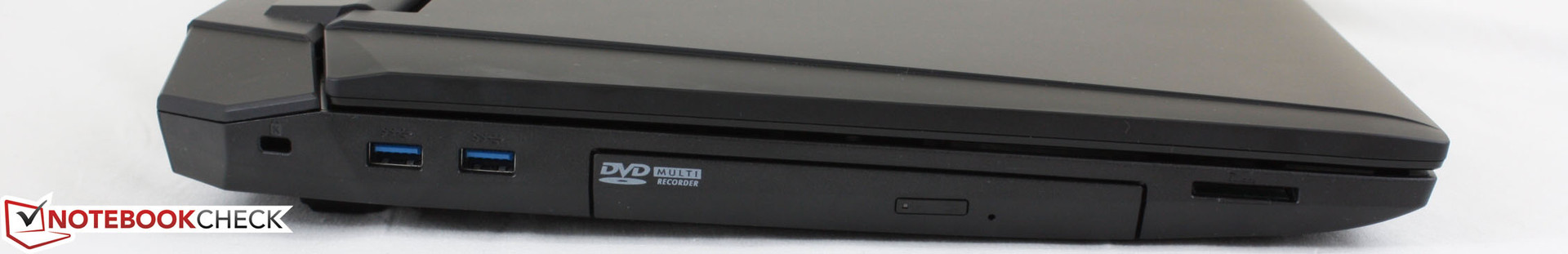

All physical ports from the G75 have returned on the G750 with little changes. Since the rear is reserved for the large vents and battery, all inputs are easily accessible from the sides. Both the 2x 3.5 mm audio ports and Kensington lock have relocated either to the left-hand or right-hand edges, but the rest remain unmoved. The Mini DisplayPort in particular has been upgraded to and rebranded as Thunderbolt whilst maintaining full backwards compatibility. Port placement is generally good and leaves sufficient room for both right-handed and left-handed users, though the right edge can potentially get crowded as it houses all three video-out ports in addition to some USB ports and Gigabit Ethernet in close proximity. Note that the model still lacks native eSATA and FireWire ports.
Communication
Wireless connectivity is provided by a half-mini PCI-e dual-band Broadcom 802.11ac adapter (BCM4352) capable of up to 876 Mbps theoretical transfer rates, thus making the G750 one of the few notebooks released thus far to offer near-gigabit speeds over WiFi. The tri-stream version (BCM4360) offers theoretical speeds greater than 1 Gbps over WiFi via wider 80 MHz bands, but it remains to be seen if these will be included in future ROG models. Regardless, both models are fully compatible with 802.11n networks as we ran into no connectivity issues or random drops when connected. There is no WWAN or GPS connectivity as expected from a large gaming DTR.
Accessories
The G750 includes no accessories out of the box beyond its power adapter, extra screws, drivers disc, warranty card and quick start/maintenance guides. Additional ROG-branded accessories and gear can be found through its online store. The lack of a specialized docking port means utilizing the Thunderbolt and USB ports for most accessories and extensions.
Maintenance

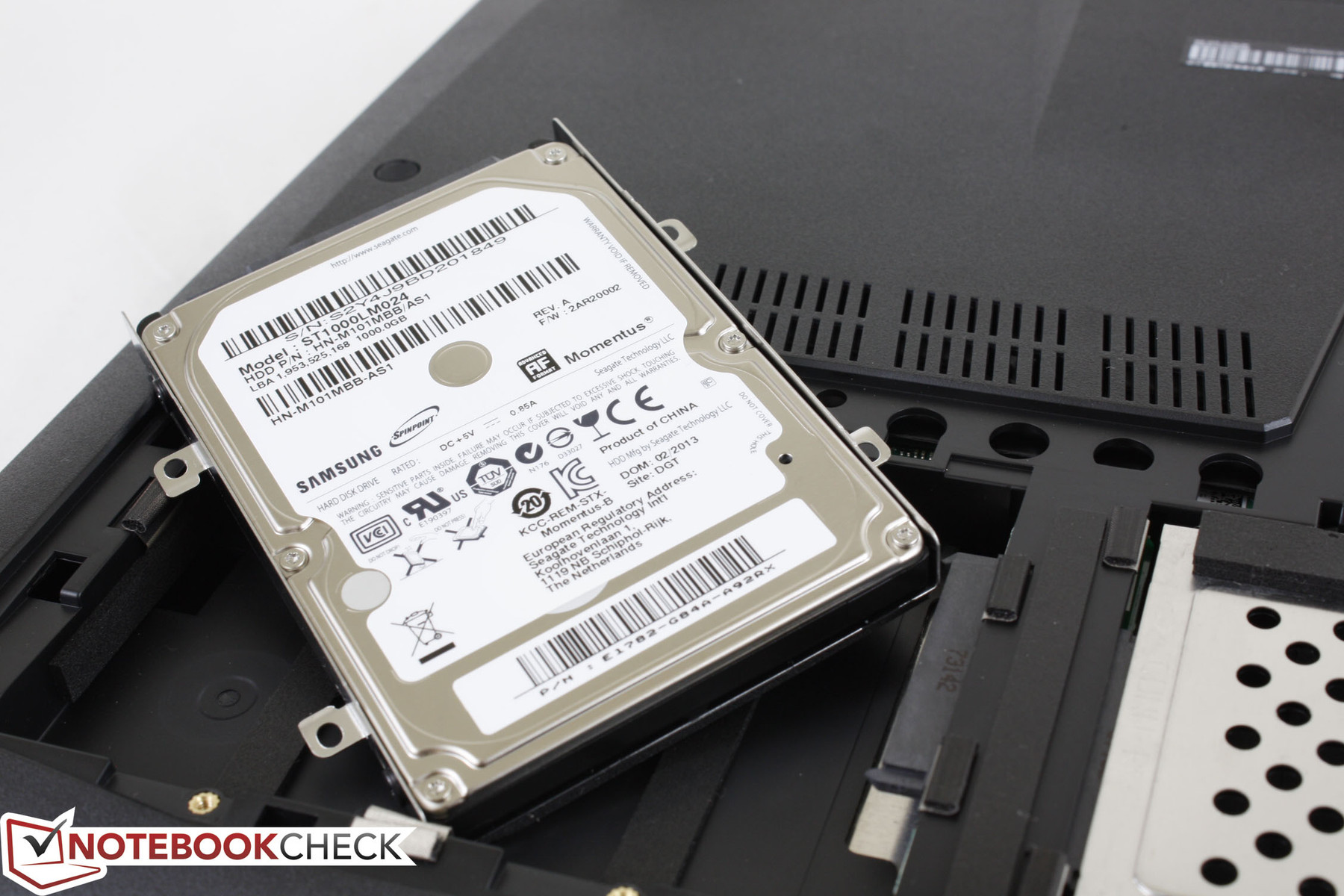

The G750 allows for easy access to two of the four SODIMM slots and two RAID capable 2.5-inch SATA III bays from underneath the notebook. Direct access to the half mini PCI-e slot, the last two RAM slots and the cooling system, however, will require extensive dismantling and removal of at least a dozen screws of multiple sizes. Thus, cleaning the dual system fans can be a challenge. The highly integrated components mean largely unupgradeable processors, which is a common disadvantage compared to highly customizable barebones. Additional shots of the motherboard can be seen in our preview of the pre-production model.
Warranty
Beyond the usual one year parts and labor warranty for U.S. customers, Asus also throws in 24/7 tech support and a 30 day zero dead pixel warranty that is commonly offered from other high-end system resellers. Registering the product online will also net one year of accidental damage protection. The ROG series has a large following and thus an active official online forum for live support, Q&A and RMA services if necessary.

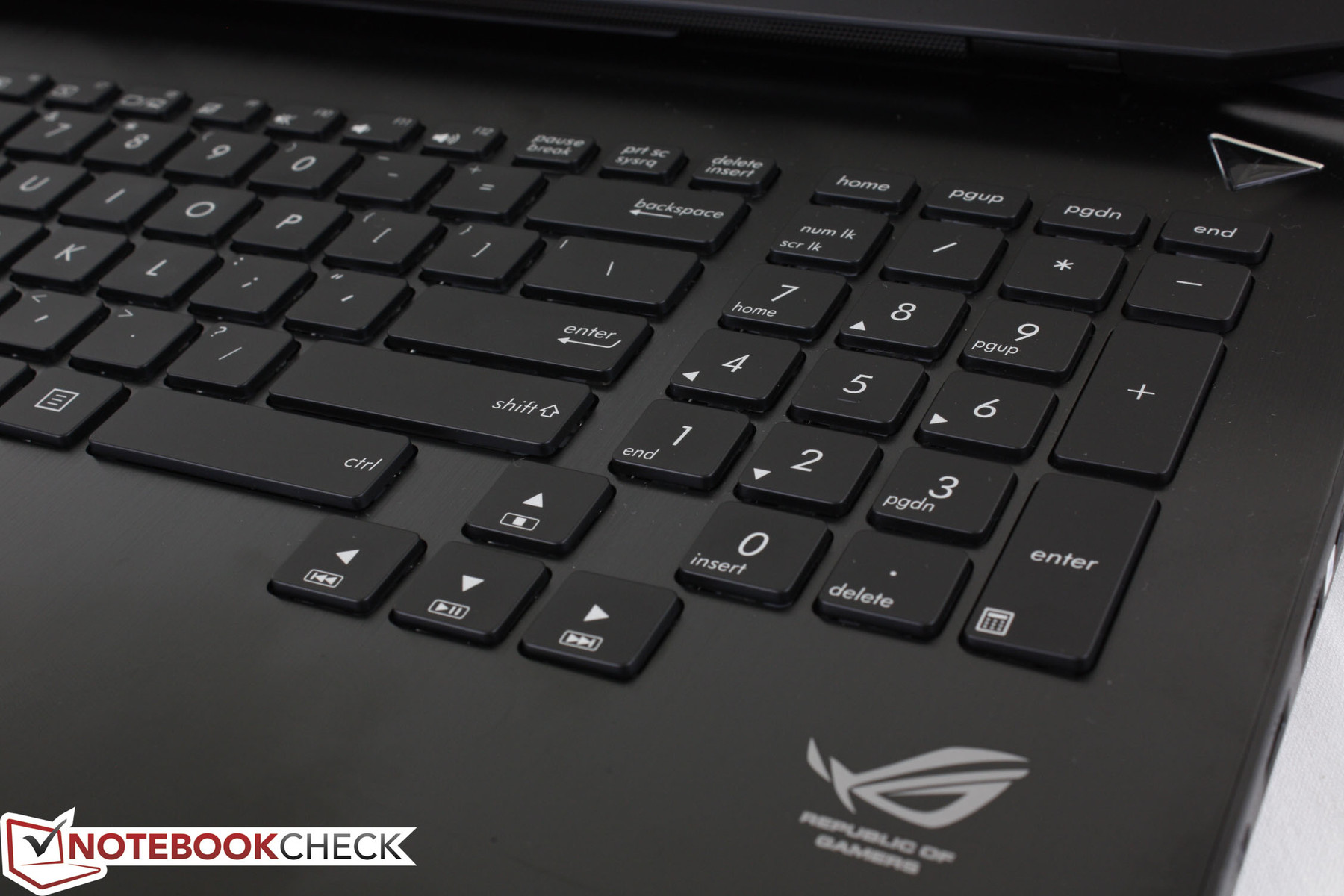

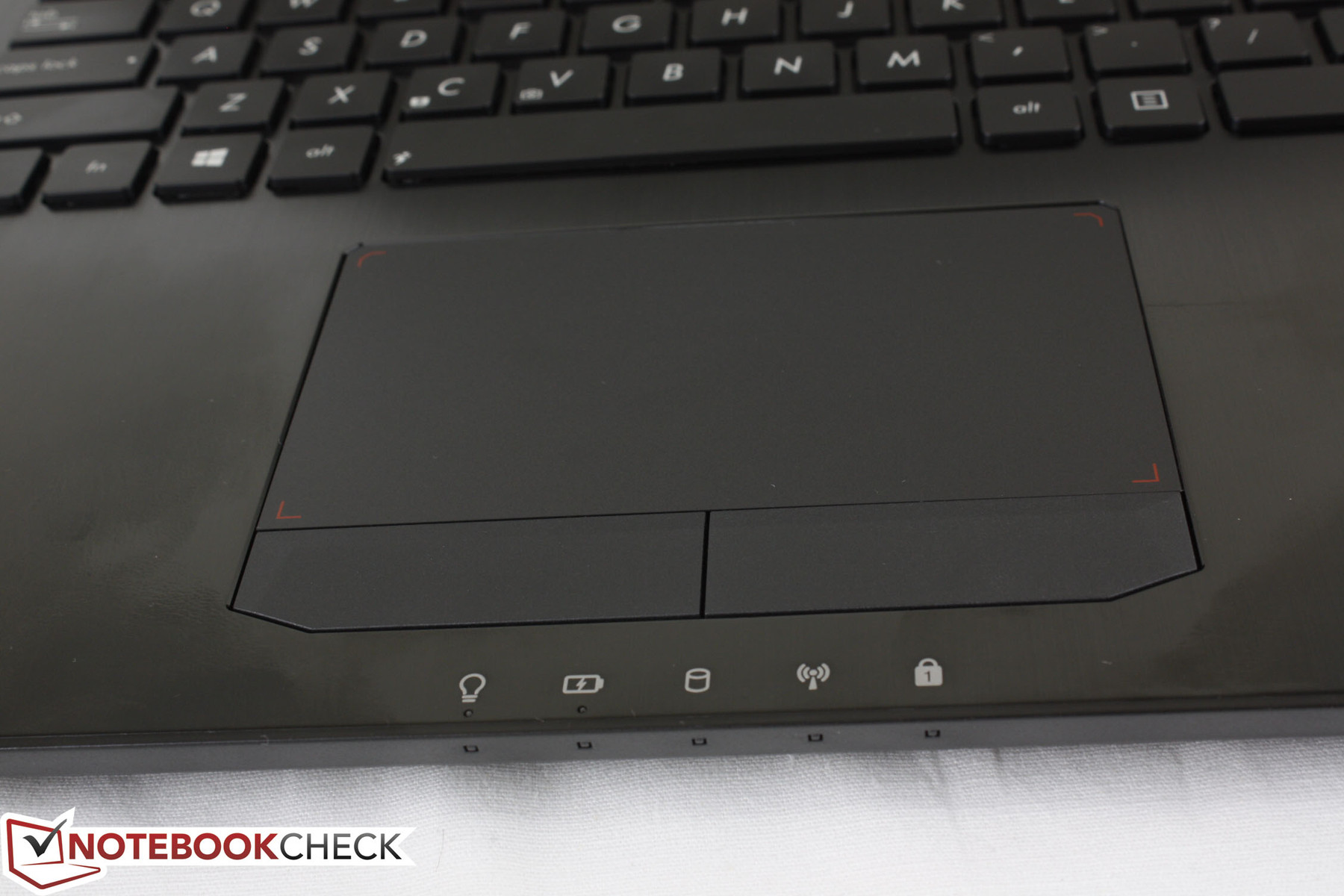

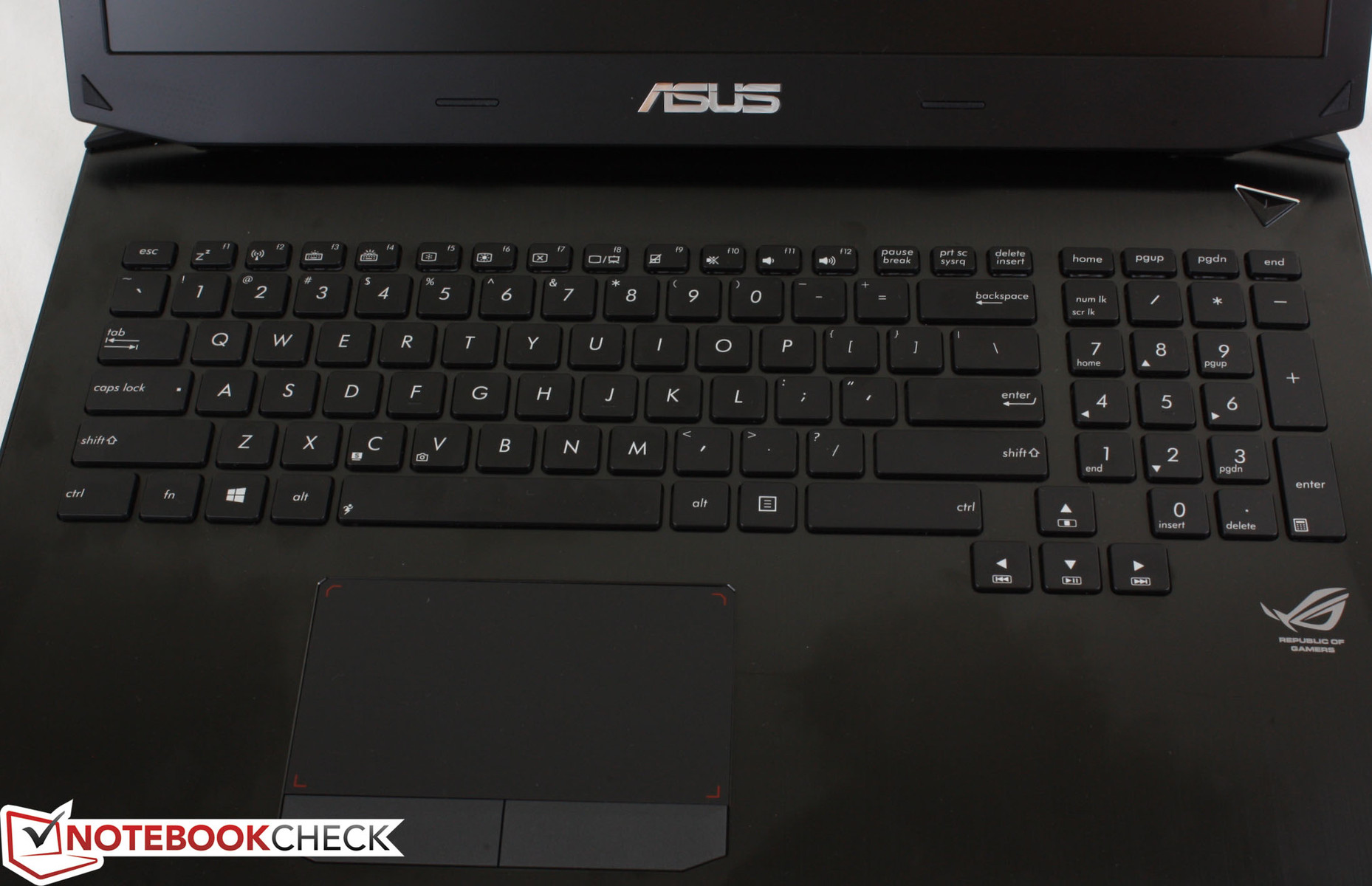

Input Devices

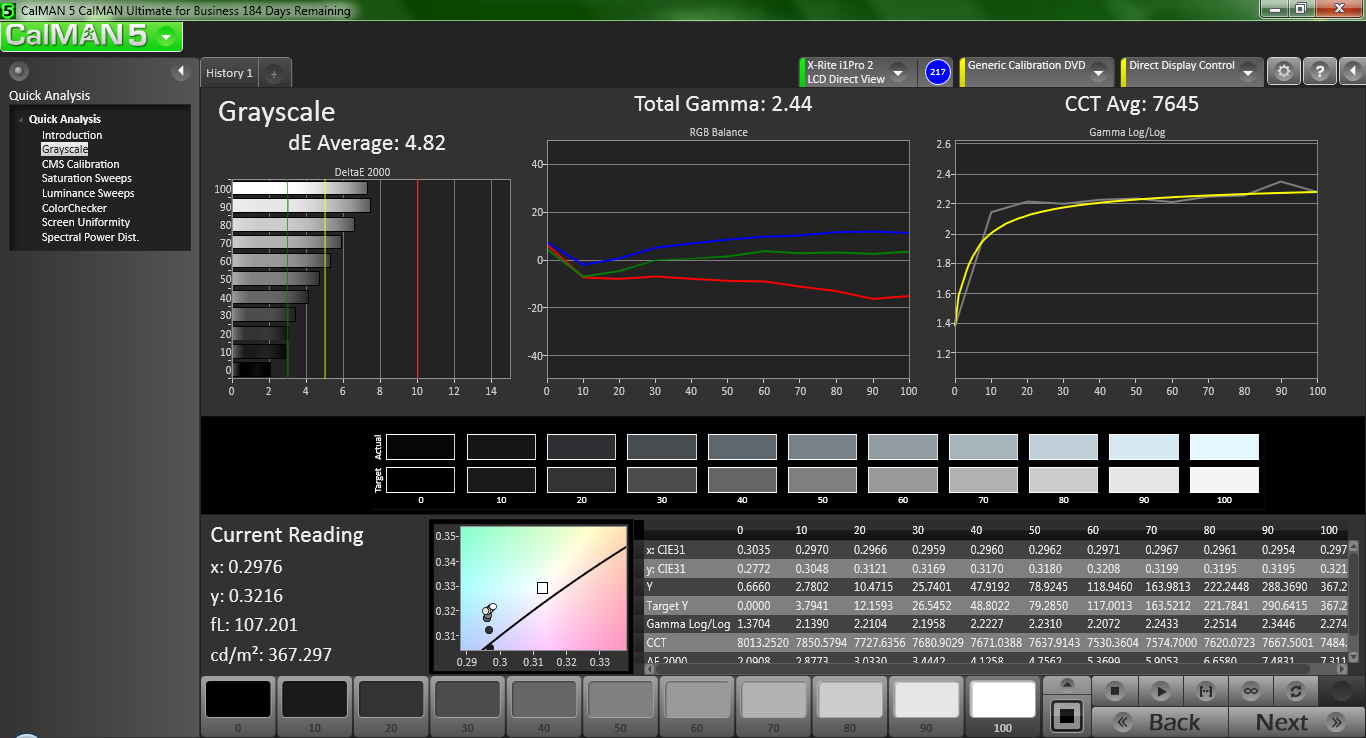

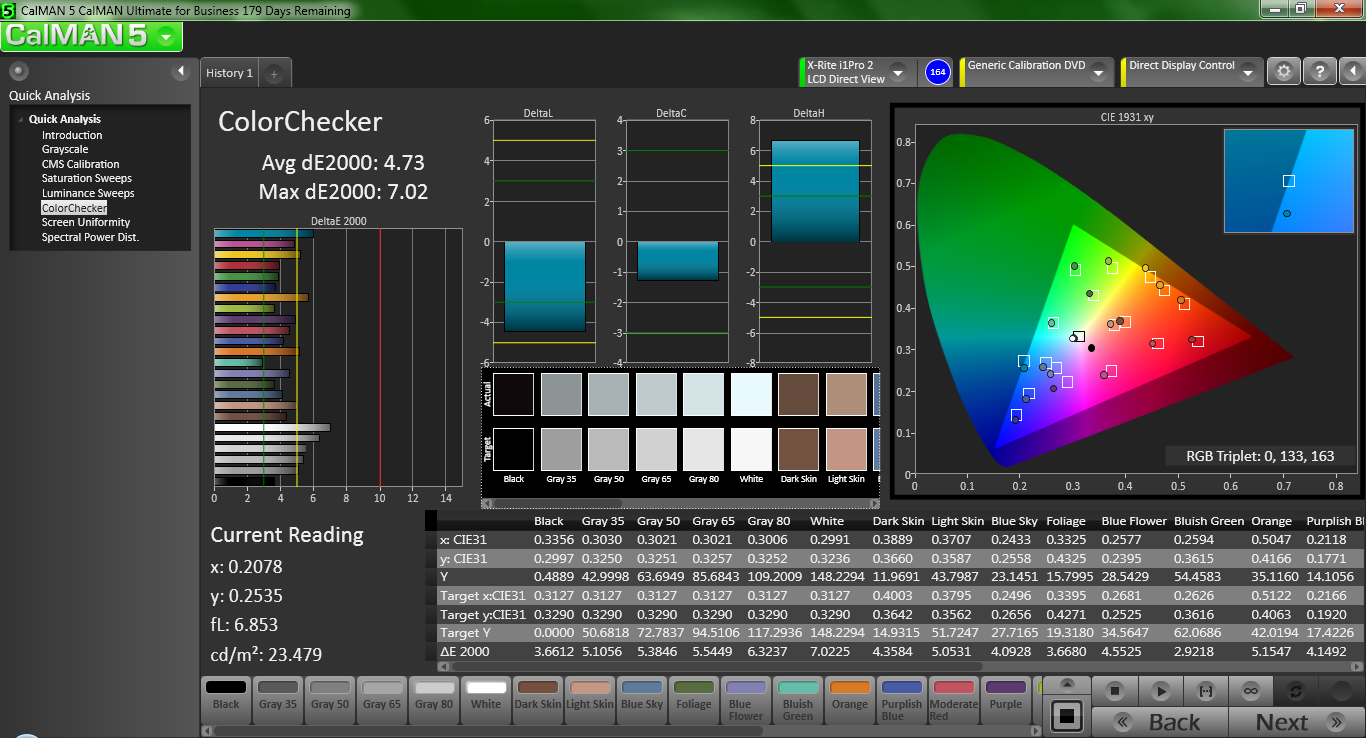

Display

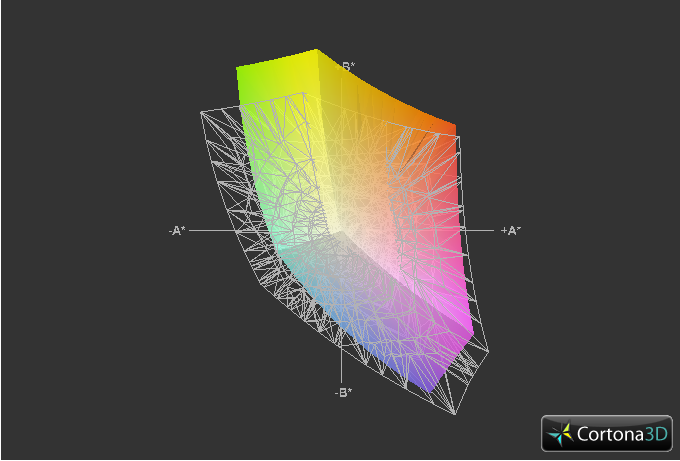

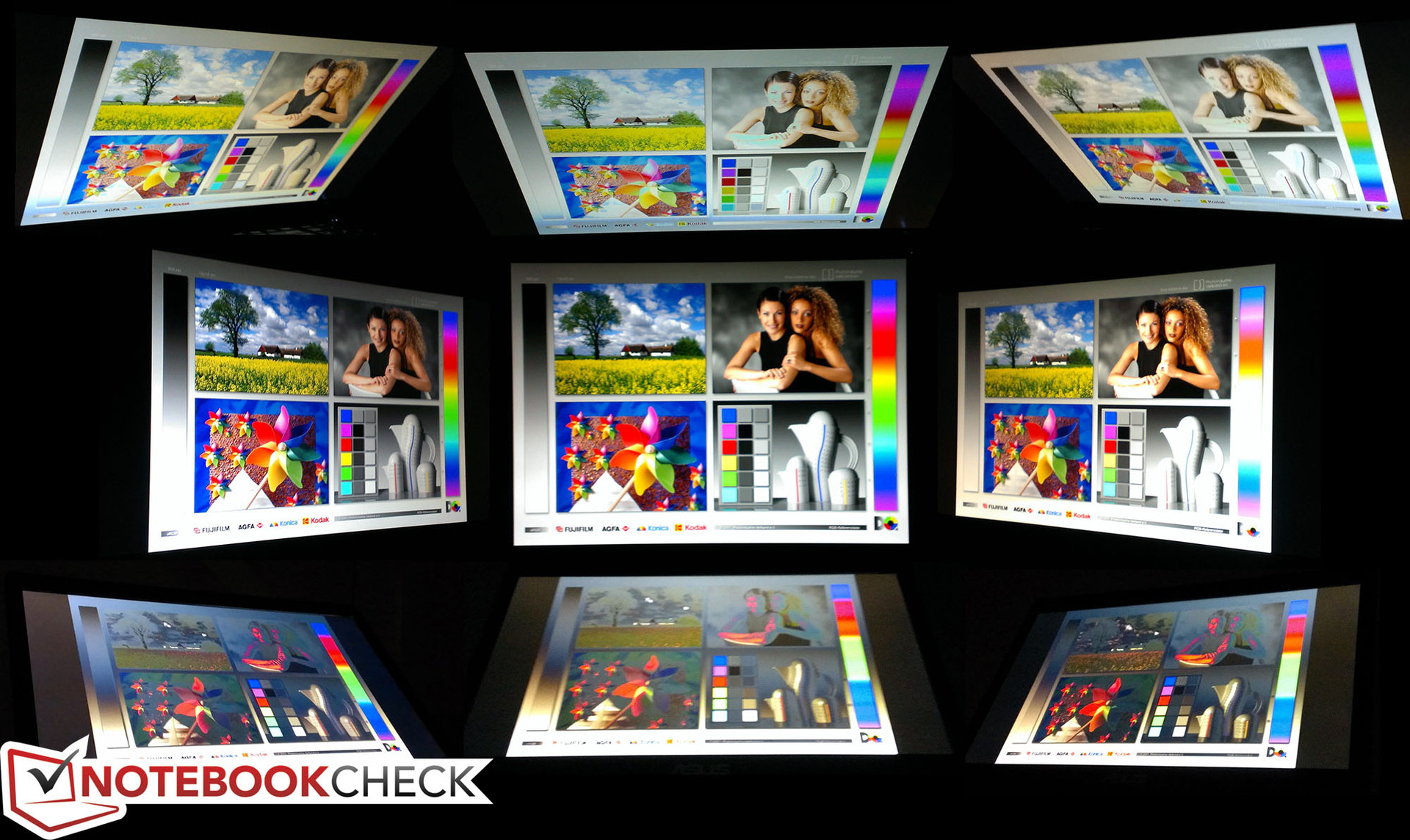

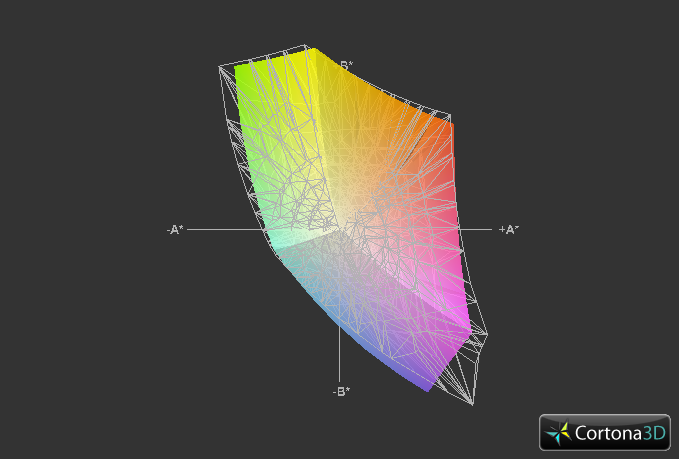

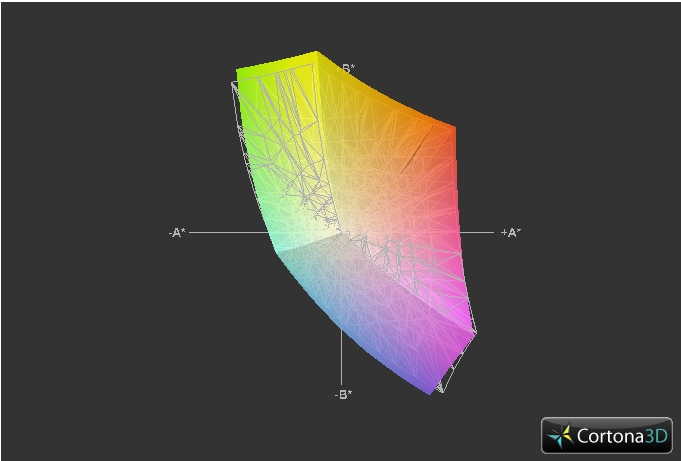

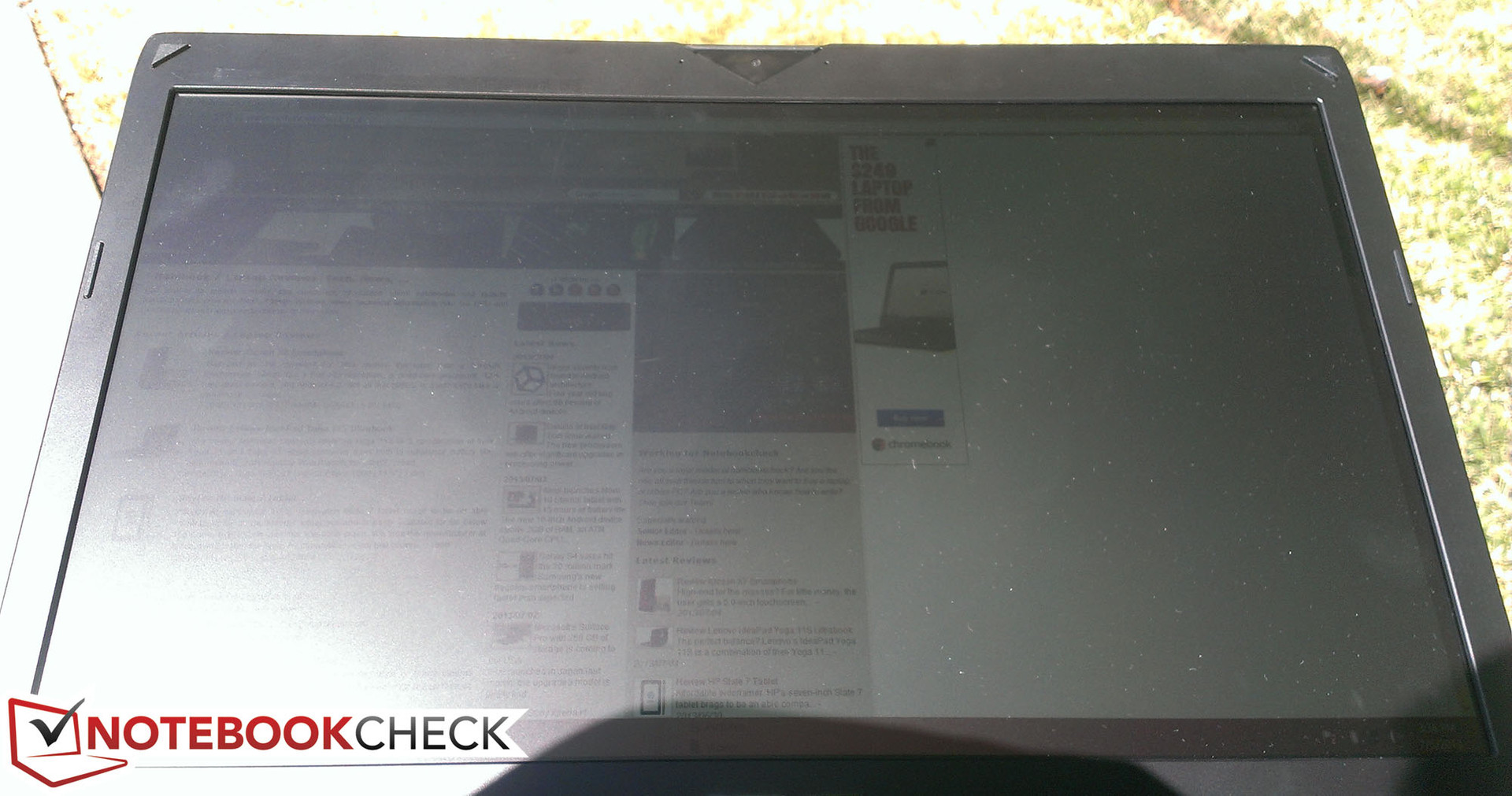

The full HD matte panel from CHIMEI (ID: CMO1720) is indeed different than the panel on the pre-production G750JX model. Nonetheless, it is still a high quality panel that can also be found on numerous other high-end 17.3-inch DTRs including the MSI GT780R, Clevo P170SM, Valkyrie CZ-17and even on Asus’s own G75VW and N76VZ. Colors are subjectively deep with no obvious screen door effects that are more common amongst budget displays.

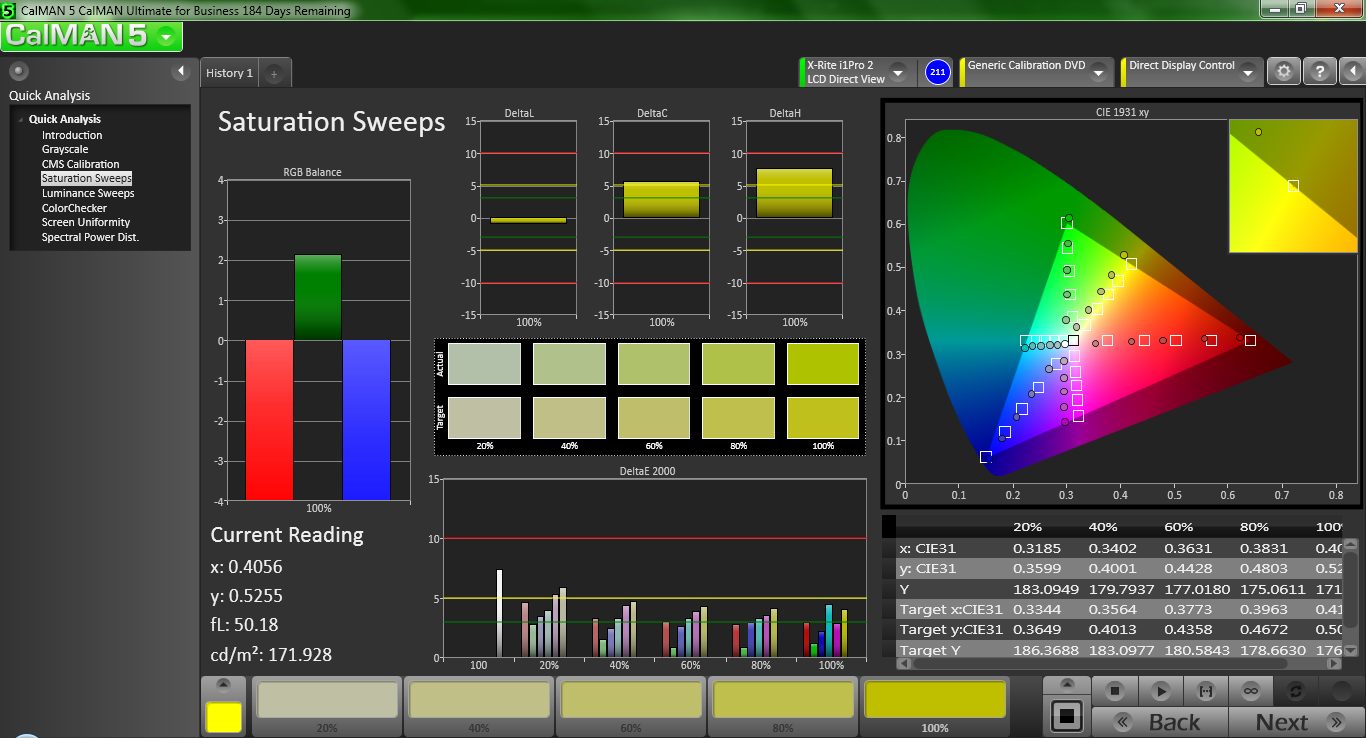

With the X-Rite i1Pro Basic 2 spectrophotometer, an average brightness of about 336 nits was recorded across nine quadrants. This is about 100 nits brighter than our previous generation G75VXand G75VW review models and noticeably dimmer than the G75V. Brightness distribution could have been a bit better, but is essentially indiscernible to the naked eye. Contrast is good at best at close to 500:1 for more than acceptable black levels during movie playback.
|
Information
X-Rite i1Pro Basic 2
Maximum: 378.5 cd/m²Average: 336.7 cd/m² Brightness Distribution: 79 % Center on Battery: 368 cd/m² Black: .77 cd/m² Contrast: 478:1 |
Performance

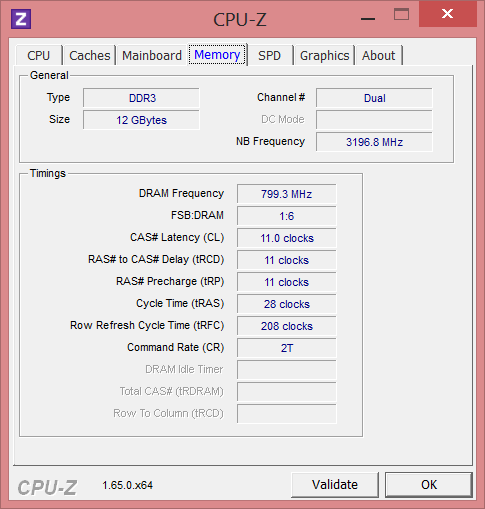

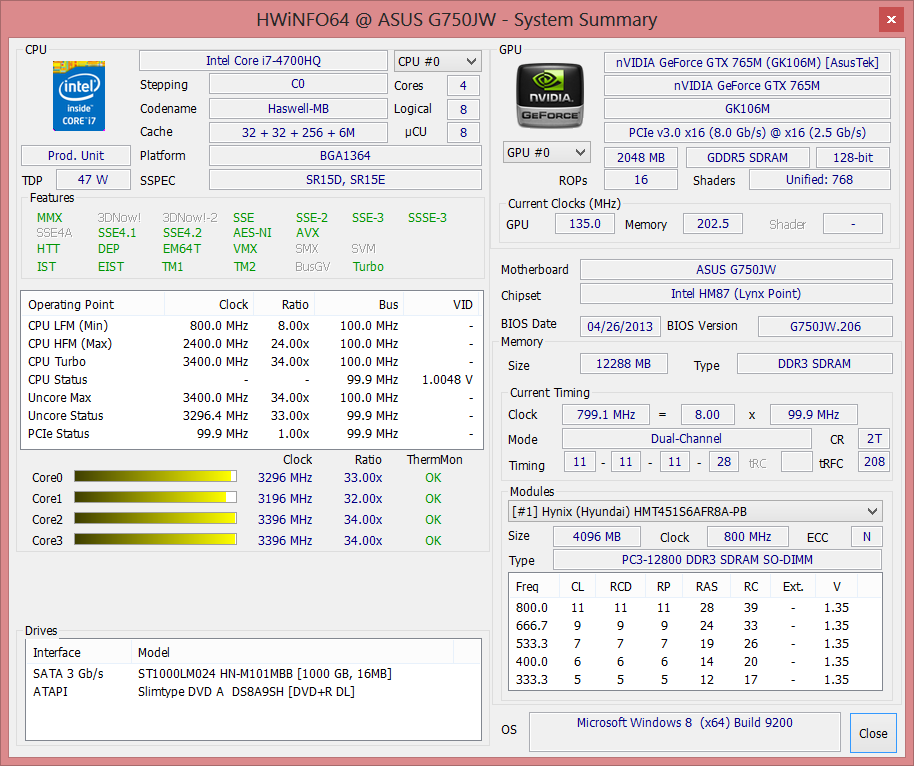

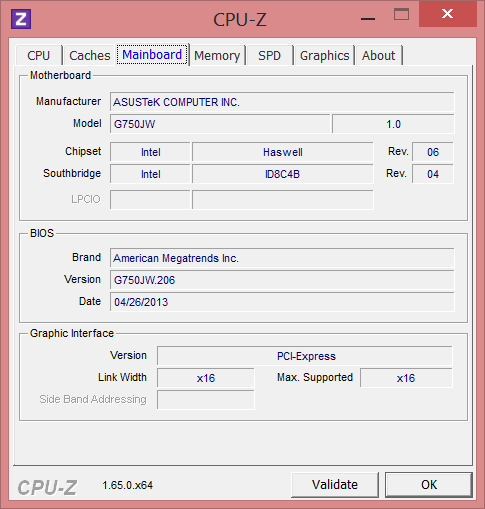

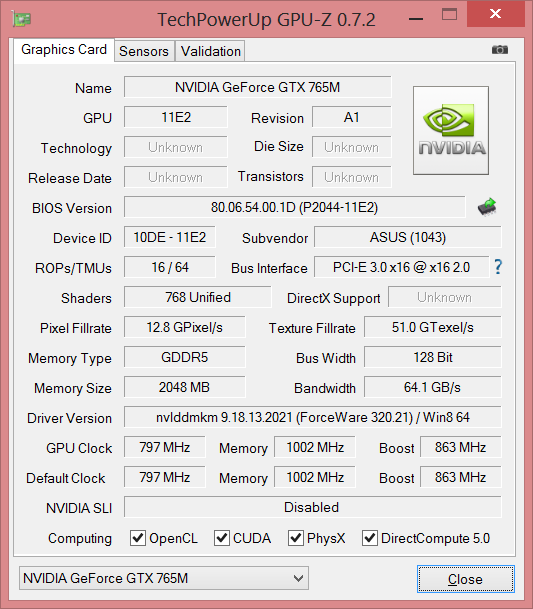

System information Asus G750JW

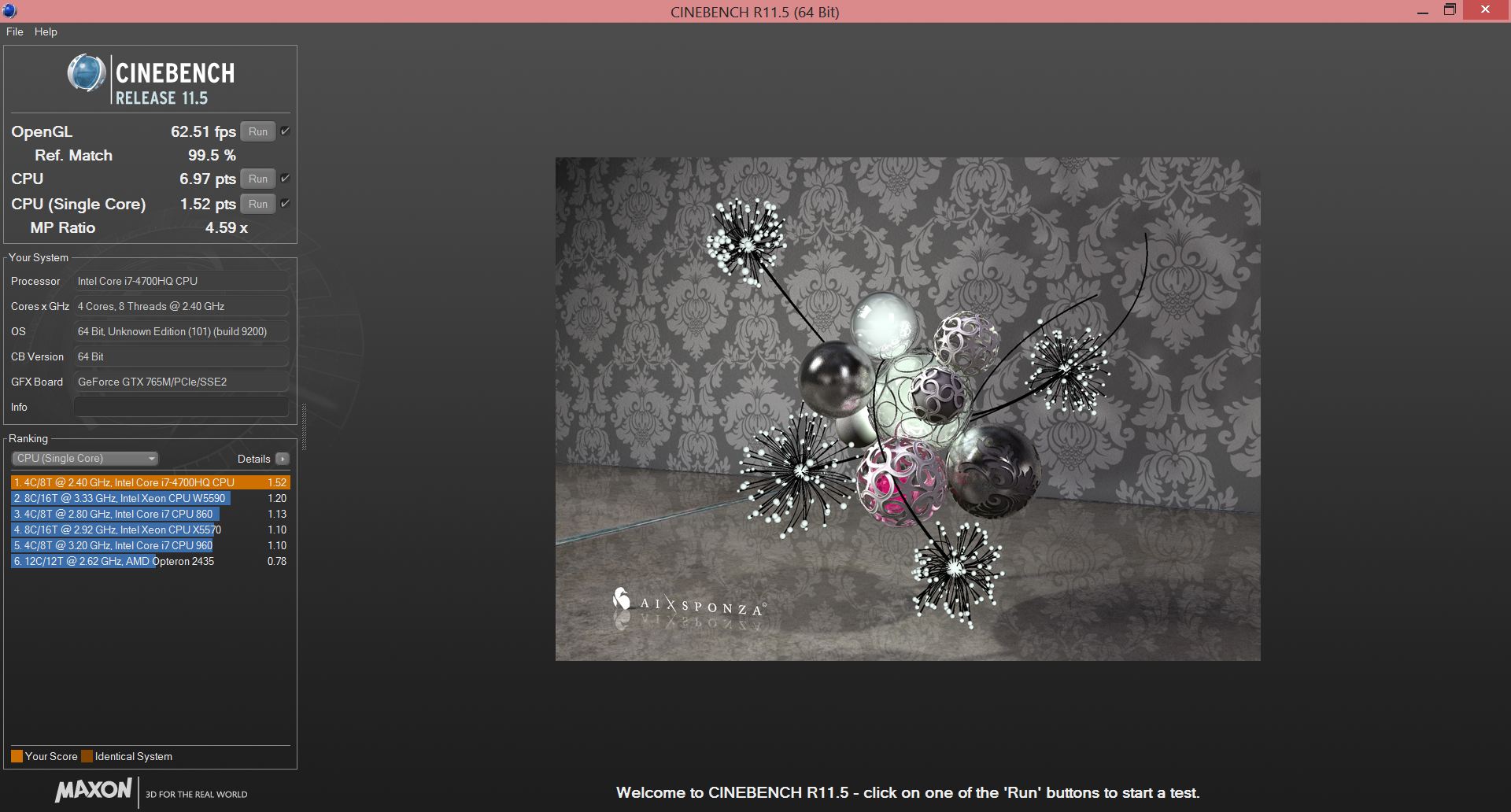

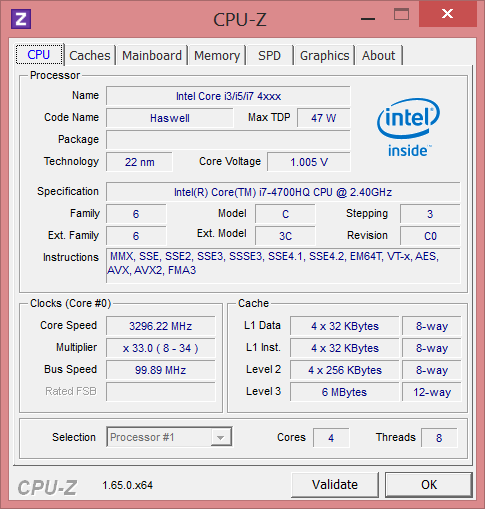

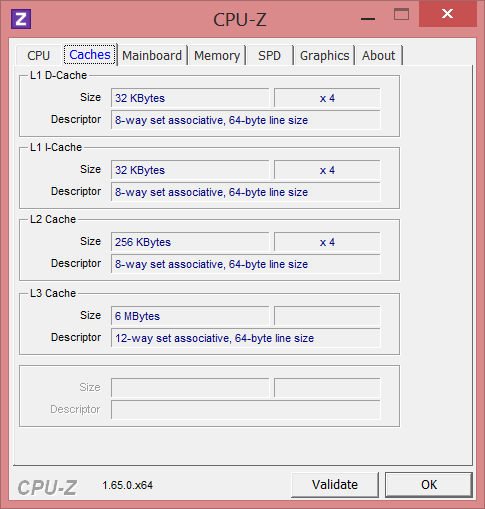

Processor
Help
|

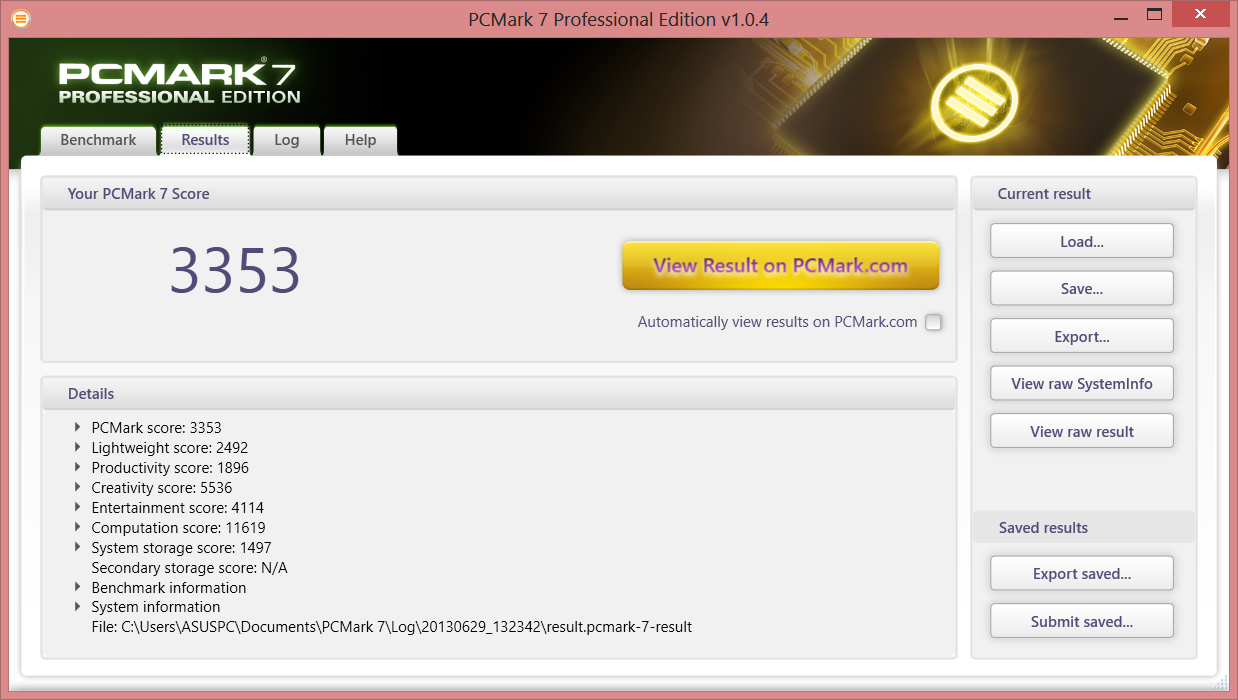

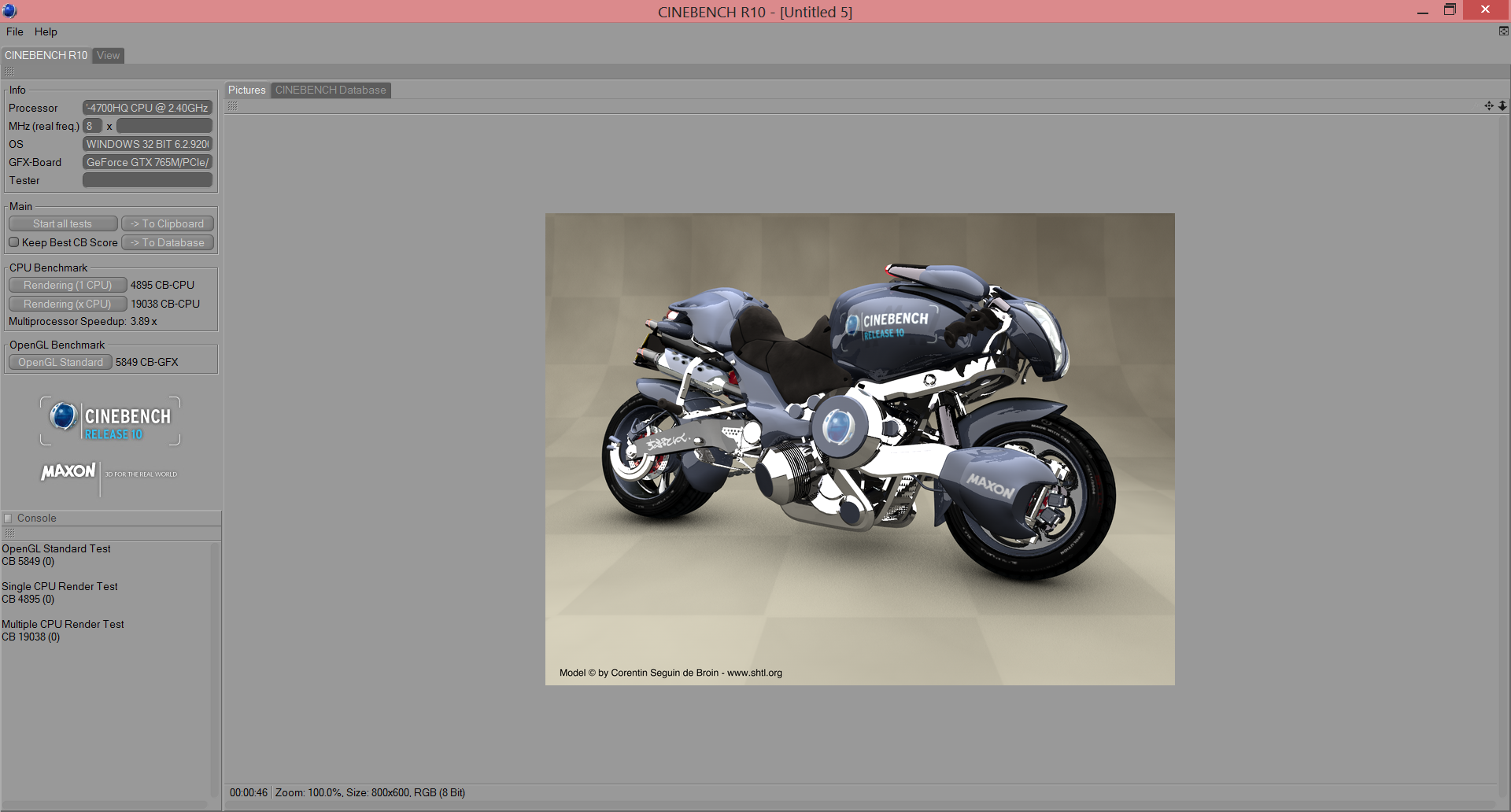

System Performance
Help
|

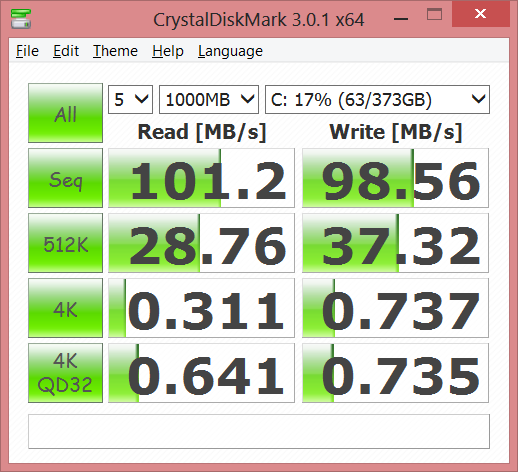

Storage Devices

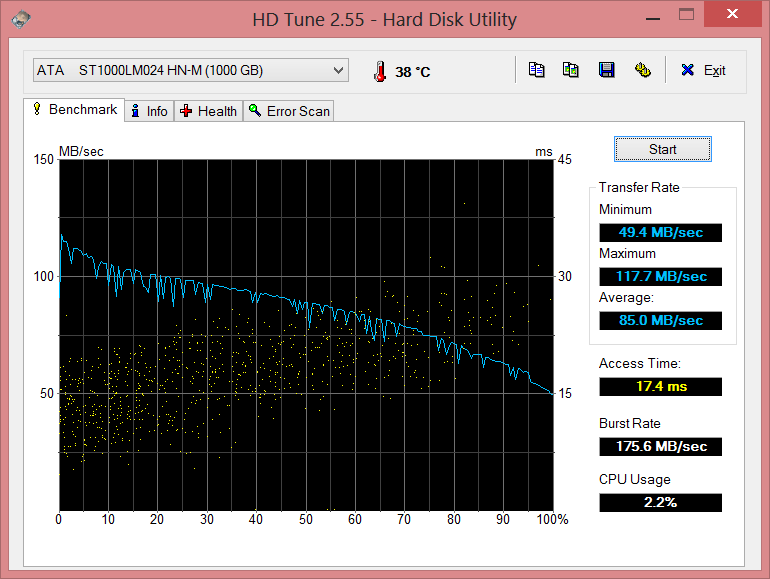

Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
Transfer Rate Minimum: 49.4 MB/s














































































































































































































Transfer Rate Maximum: 117.7 MB/s














































































































































































































Transfer Rate Average: 85 MB/s














































































































































































































Access Time: 17.4 ms














































































































































































































Burst Rate: 175.6 MB/s














































































































































































































CPU Usage: 2.2 %














































































































































































































Gaming Performance
low | med. | high | ultra | ||

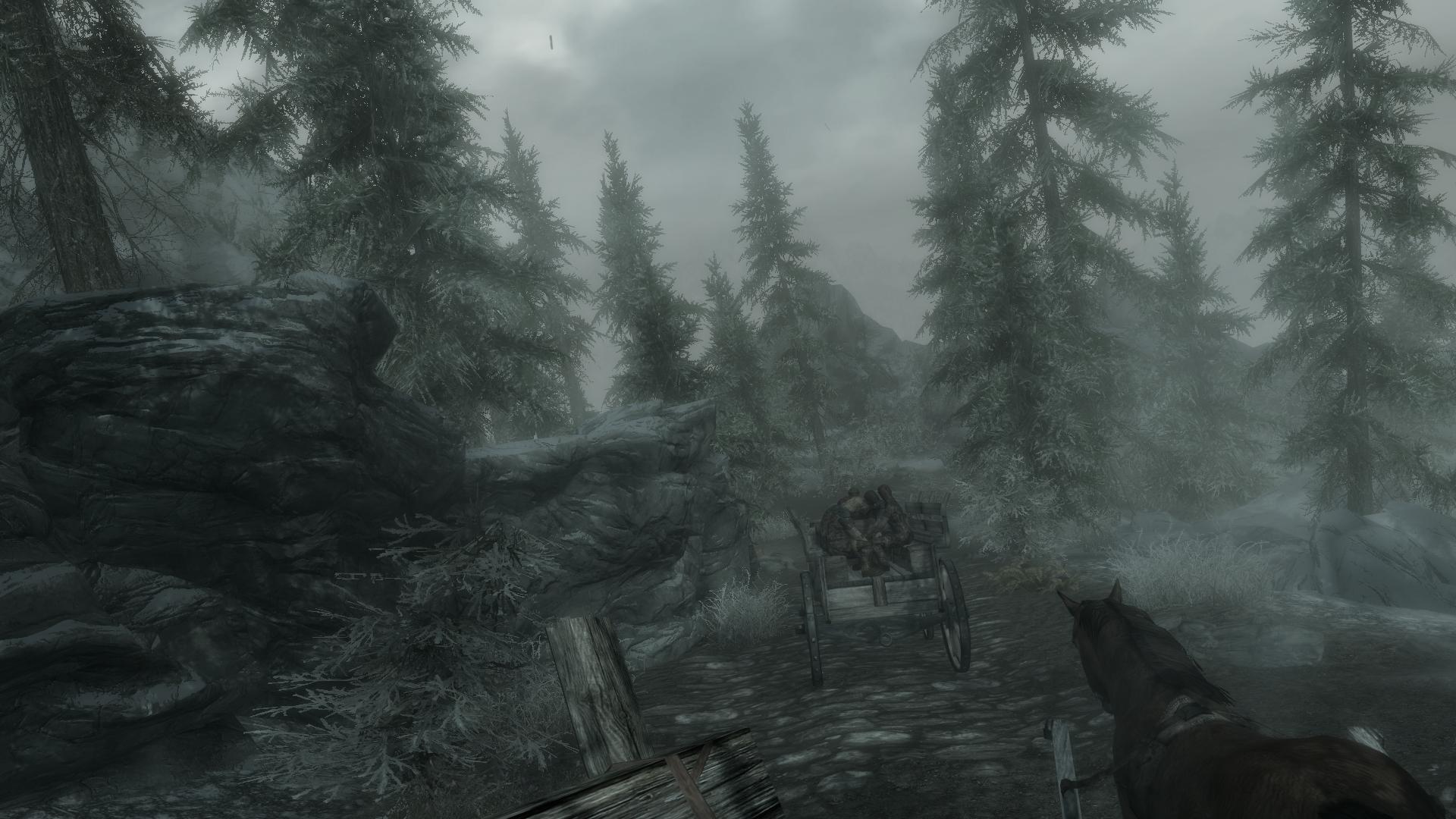

The Elder Scrolls V: Skyrim (2011) | 88 | 62 | 37 | fps | |
Sleeping Dogs (2012) | 112 | 58 | 16 | fps | |

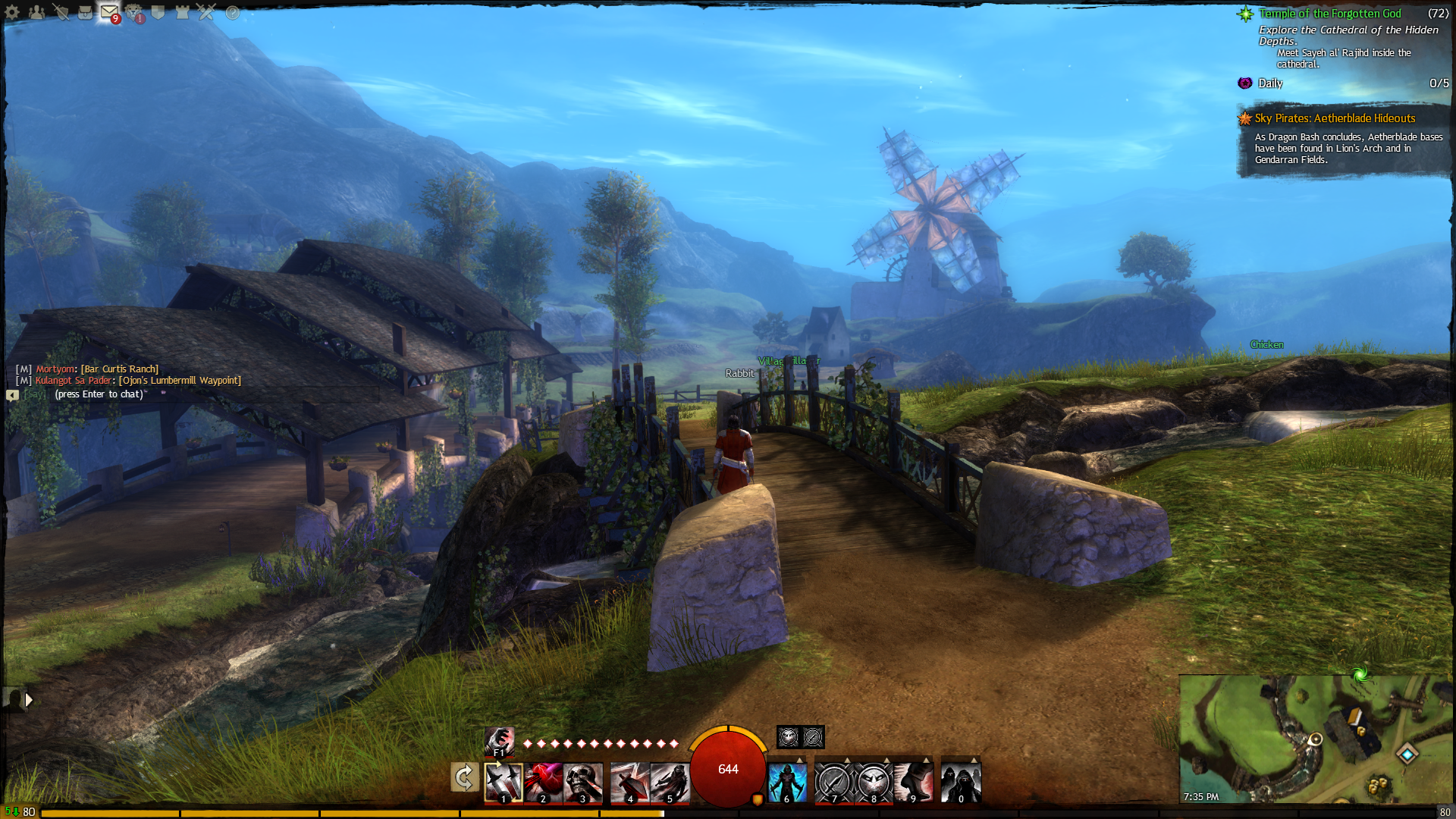

Guild Wars 2 (2012) | 58 | 27 | fps | ||
Dishonored (2012) | 127 | 115 | 72 | fps | |
Call of Duty: Black Ops 2 (2012) | 127 | 81 | 51 | fps | |
Tomb Raider (2013) | 114 | 72 | 33 | fps | |
StarCraft II: Heart of the Swarm (2013) | 125 | 92 | 35 | fps | |
BioShock Infinite (2013) | 90 | 76 | 28 | fps | |
Metro: Last Light (2013) | 59 | 37 | 19 | fps |
Help
|
Emissions
System Noise
The G750 is a quiet machine like the G75 before it, which is opposite of what its aggressive looks may suggest at first glance. Idling or light loads (such as HD video streaming) result in near silent fans at a recorded 31 - 32 dB(A) while higher loads like gaming hover around 39 dB(A), or noticeably lower than the similarly sized Valkyrie CZ-17 and MSI GT70H. Very CPU intensive loads will slowly bump fan noise up to 46 dB(A).
When under full uninterrupted stress, we were able to record a maximum of about 49 dB(A). This is similar to other high-end 17.3-inch DTRs where ~50 dB(A) maximums are the norm. Fortunately, most users will rarely ever experience this level of noise as this was reproduced under synthetic prime95 and FurMark loads that are unrepresentative of everyday use or even gaming.
The overall low fan noise, however, is overshadowed by the very loud optical drive. At over 50 dB(A) when accessing and 40 dB(A) during playback, it can be even louder than the system fans under high workloads. Streaming or transferring to the HDD first is recommended over direct DVD playback to avoid system noise for longer movie sessions.
Noise Level
Idle | |||||
DVD | |||||
Load | |||||
30 dB silent | 40 dB audible | 50 dB loud | |||
min:
|
Temperature
Asus continues to use separate discrete cooling systems for the CPU and GPU instead of opting for a single fan solution as seen on the MSI GT70H or Nomad 15. The cooling has been designed to exhaust heat only from the rear to avoid overly warm palm rests and keyboard keys. Even so, surface temperatures are still somewhat warm at about 30 degrees C on average on both the bottom and top surfaces. Results are a little higher here compared to our pre-production G750JX model simply due to ambient conditions.
Maximum stress will increase surface temperatures to potentially over 50 degrees C on the bottom corner hot spot closest to the GTX GPU. As advertised by Asus, the front areas change little in temperature - including the palm rests – for comfortably cool hands during more intense gaming sessions. The entire right side of the notebook is clearly warmer than the left both when idling or under load despite the slightly larger fan for the GPU. The G750 is for use on a flat desk and not on the lap as expected from users.
Max. Load
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||
Maximum: 41.2 °C Average: 34.6 °C | Maximum: 50.8 °C Average: 39.6 °C |

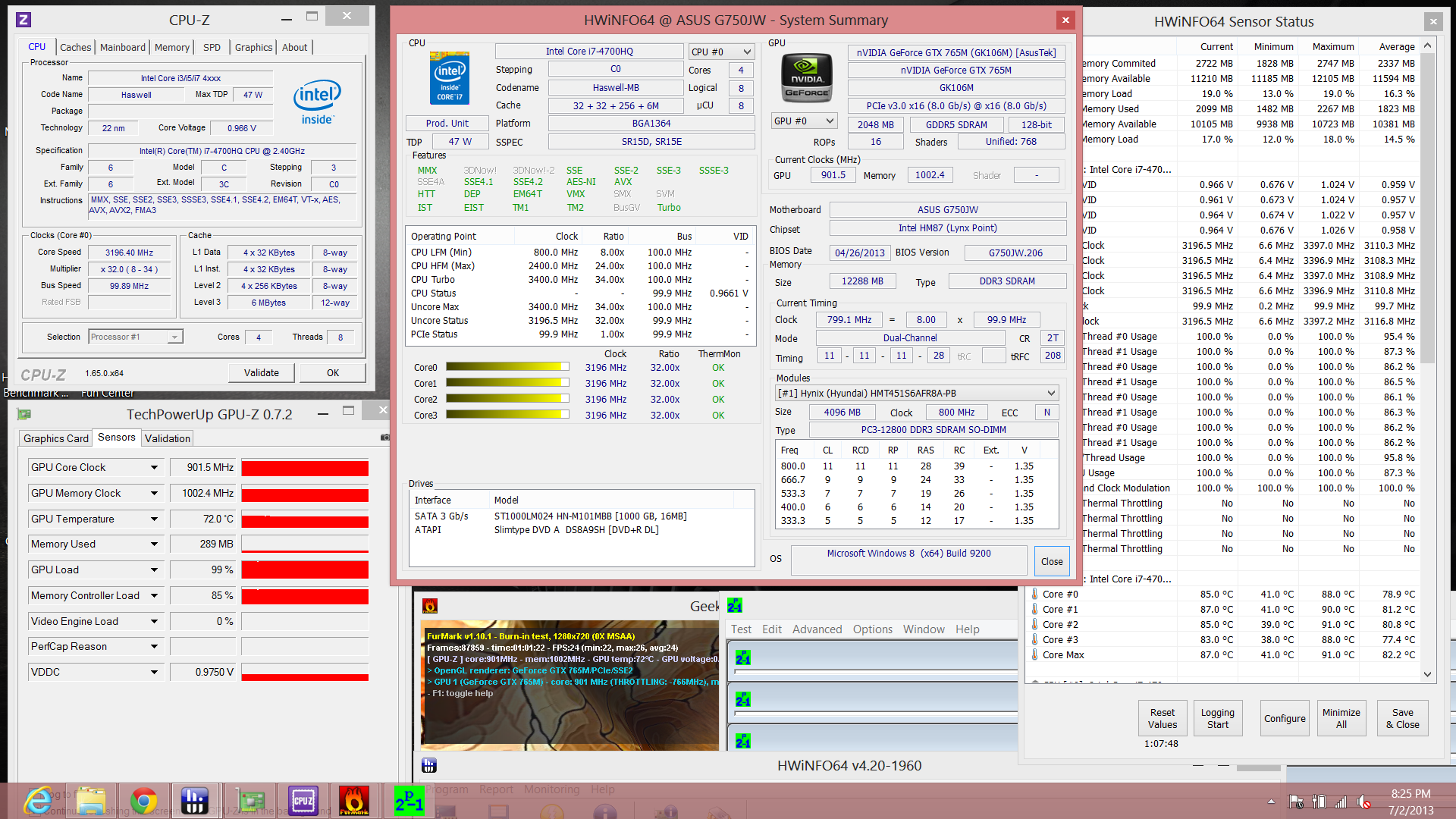

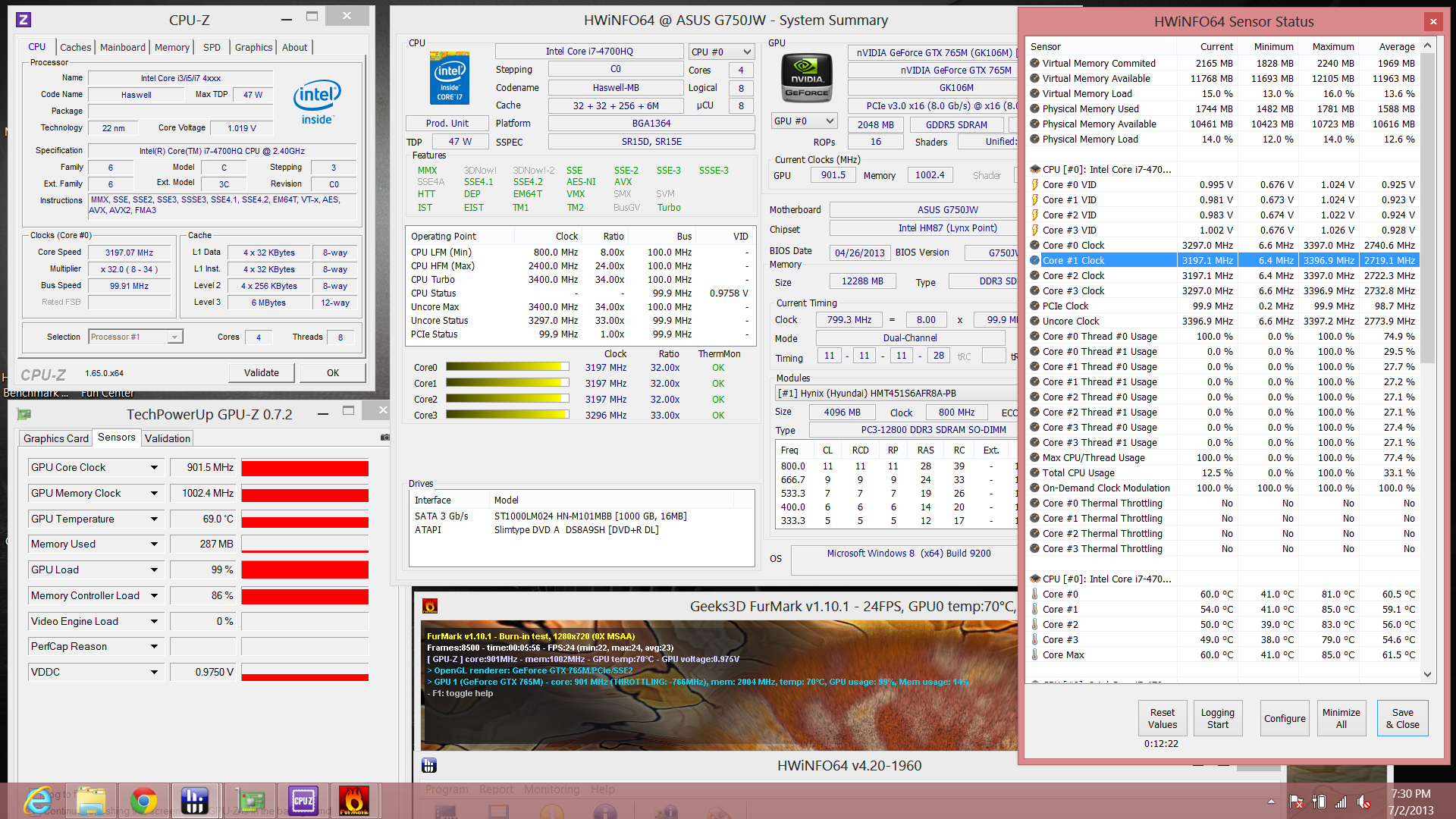

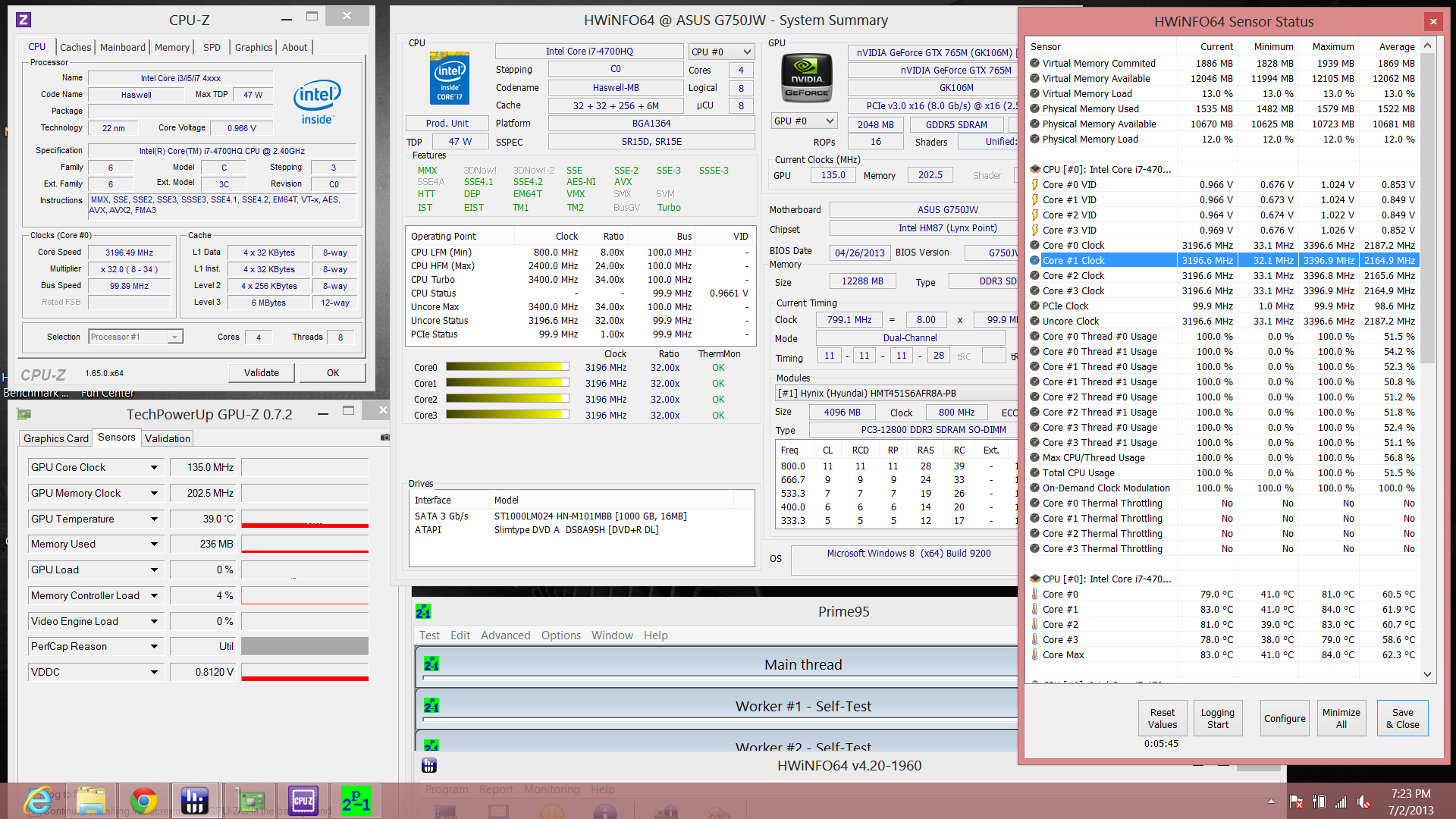

Stress Test
Speakers

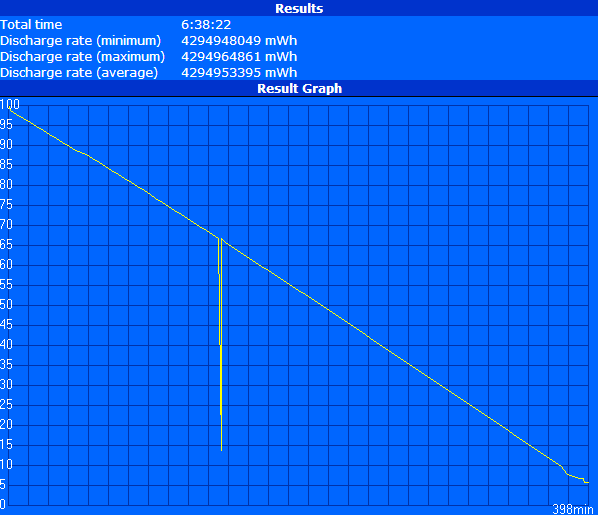

Battery Life
Battery runtime
Idle (without WLAN, min brightness) | 6h 38min | |
Surfing with WLAN | 3h 59min | |
DVD | 3h 55min | |

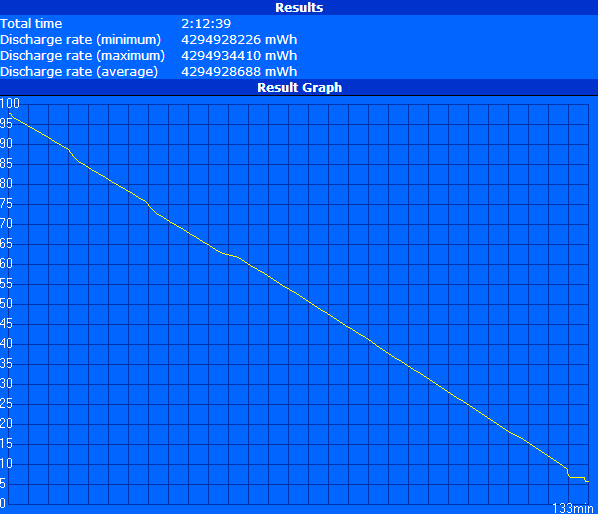

Load (maximum brightness) | 2h 13min | |
